Authentication

Stack relies on Keycloak for OAuth2 and OpenID Connect flows. When you run stack init, the CLI installs everything required to run a shared Keycloak control plane inside your cluster.

Alt text

Enabling Keycloak

spec:
  components:
    ingress:
      port: 30010
    db:
    rest: {}
    auth:
      # Required by keycloak for OIDC. OIDC requires a stable redirect URL.
      hostname-url: http://localhost:30013
      # Make keycloak admin accessible via /oidc/admin
      expose_admin: true

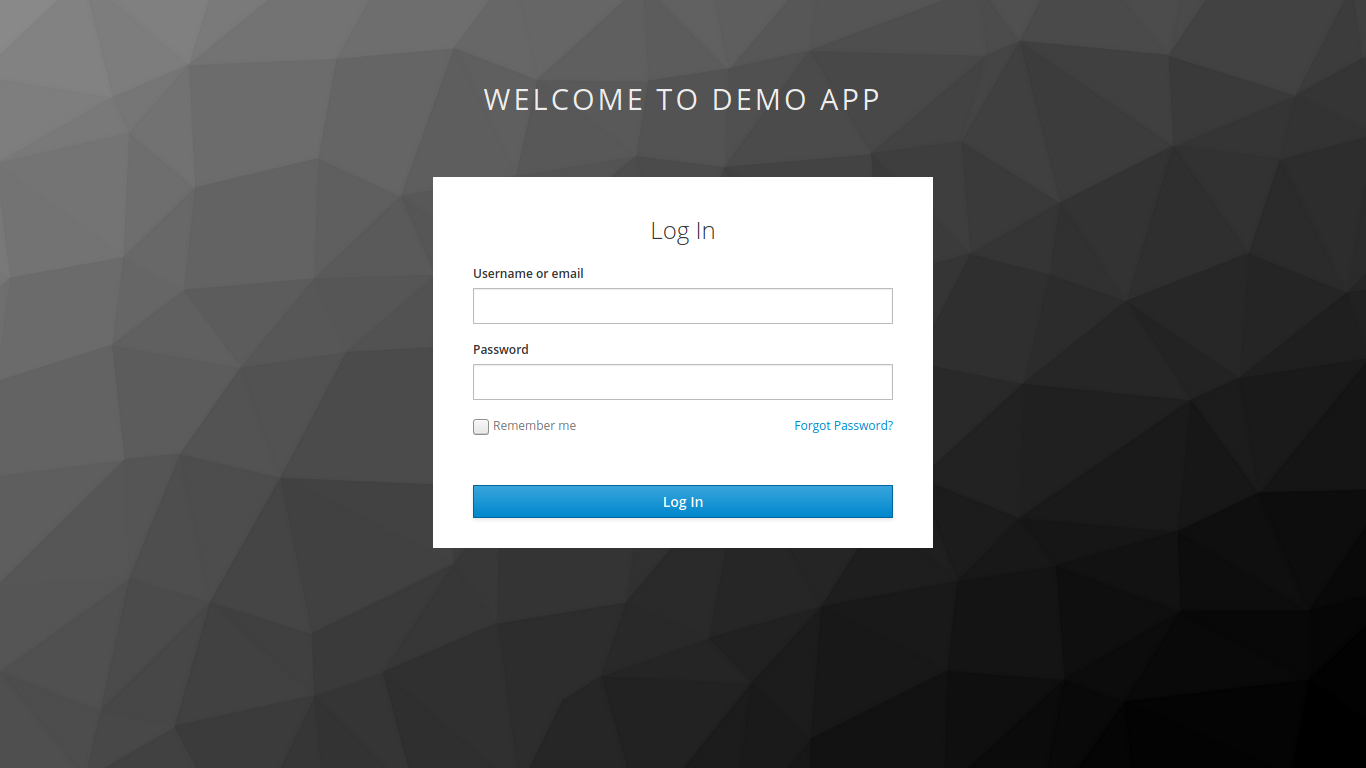

when you enable auth in your Stack yaml all traffic to your app will be intercepted and a login/registration page will be shown.

Alt text

How Stack uses Keycloak

  • Each StackApp with spec.components.auth.hostname-url defined triggers the Stack controller to ensure a Keycloak realm and OAuth2 Proxy configuration exist.
  • The CLI creates an initial admin secret named keycloak-initial-admin in the Keycloak namespace. stack status --manifest … reads this secret so you can log in instantly.
  • OAuth2 Proxy is configured to trust Keycloak and inject the right upstream headers toward your app.

What gets installed

  1. CustomResourceDefinitions – keycloaks.k8s.keycloak.org and keycloakrealmimports.k8s.keycloak.org enable the operator to watch realms and servers.
  2. Keycloak Operator – A deployment that reconciles Keycloak and KeycloakRealmImport resources.
  3. Dedicated namespace – Stack creates (or reuses) the keycloak namespace so the identity stack stays isolated.
  4. Backing database – The Keycloak operator provisions a CloudNativePG cluster for Keycloak itself; Stack wires credentials automatically.

Verifying the installation

kubectl get pods -n keycloak
kubectl get keycloaks.k8s.keycloak.org -n keycloak
kubectl get secret keycloak-initial-admin -n keycloak -o yaml

If you ever need to reinstall Keycloak components (for example after manually deleting the namespace), re-run stack init. The CLI reapplies the CRDs, operator deployment, and database manifests idempotently.
